Contents

Campus Solutions List of Values (SCC_GET_LOV)

The Campus Solutions “List of Values” (LOV) web service (SCC_GET_LOV) allows third-party systems to pull setup data out of PeopleSoft. This is useful for integrations where external applications need valid PeopleSoft codes for drop-downs (e.g. department codes, subject codes, business units).

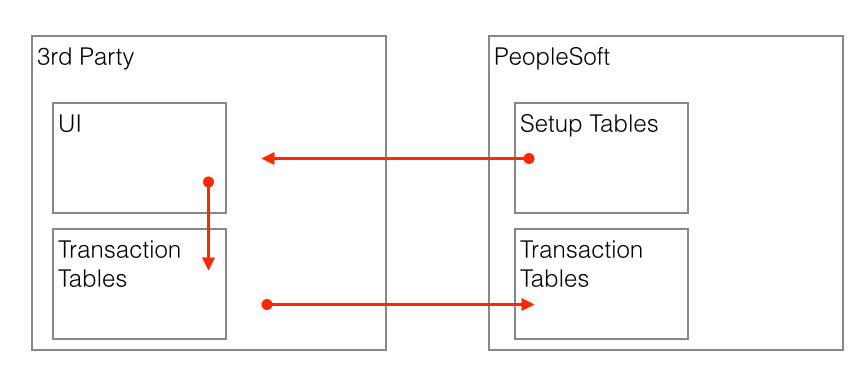

List of Values Schematic

This service operation is delivered as Inactive in the latest PeopleSoft Campus Solutions releases. If you want to use this you need to activate the service operation and then configure the LOVs you want to expose via the LOV Configuration table which we will cover in a moment. The LOV service is designed to be flexible and configurable so that you can control what values are exposed to which third parties and under what contexts.

Use Case

A common scenario is an external Admissions Application that needs to present drop-downs with values that match PeopleSoft. The external application needs PeopleSoft field codes (STRM, ACAD_PROG, etc.) so that when data is pushed back into PeopleSoft, the codes are already valid.

LOV Configuration Table

To enable the LOV web service, you configure each record/field edit table at:

Set Up SACR > System Administration > Utilities > List of Values > List of Values

The configuration gives the PeopleSoft administrator control over:

  • Visibility - Only fields with “Enable for Web Service” checked are available
  • Exclusions - You can exclude specific values from the result set
  • Override prompt tables - Use a different view than what is defined in Application Designer
  • Bind values - Filters that the third party must pass or that are hard-coded
  • Contexts - User-configured strings that define unique sets of values. Different third parties can get different result sets by calling with different context values

Simple Example - Institution Codes

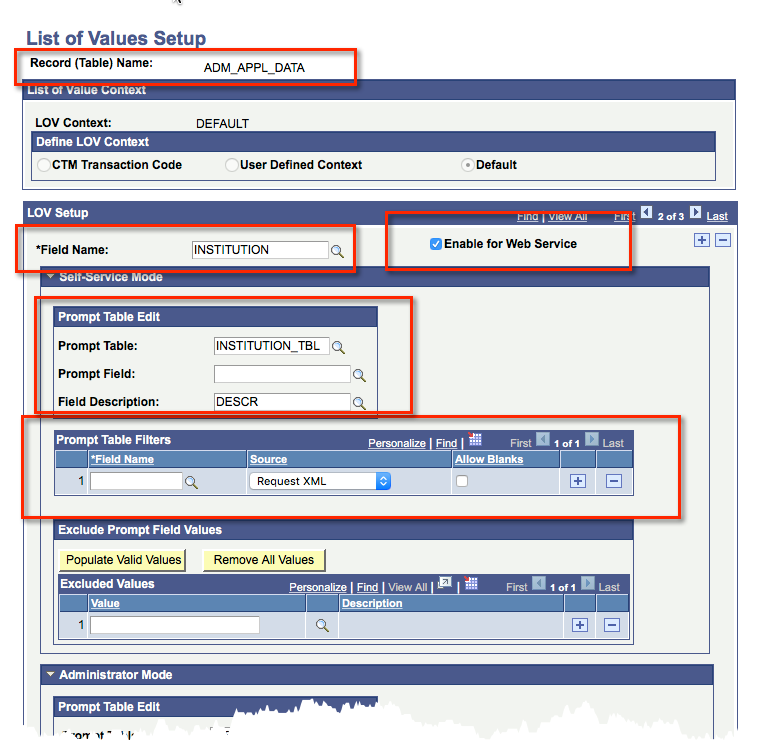

LOV Setup for Institution

This setup says the list of INSTITUTION codes should come from INSTITUTION_TBL with the DESCR field as the return value.

HTTP request to the RESTListeningConnector:

POST http://{{ip}}:{{port}}/PSIGW/RESTListeningConnector/{{targetNode}}/SCC_GET_LOV_R.v1/get/lovs?languageCd=ENG
Content-Type: application/xml
Authorization: Basic {{basicAuthToken}}

The request XML specifies the context, record, and field:

<?xml version="1.0" encoding="UTF-8"?>
<SCC_LOV_REQ>
  <LOVS>
    <LOV name="INSTITUTION_LIST">
      <FIELDNAME>INSTITUTION</FIELDNAME>
      <RECORDNAME>ADM_APPL_DATA</RECORDNAME>
      <LOVCONTEXT>DEFAULT</LOVCONTEXT>
      <KEYS>
        <KEY>
          <FIELDNAME/>
          <FIELDVALUE/>
        </KEY>
      </KEYS>
    </LOV>
  </LOVS>
</SCC_LOV_REQ>

First let’s look at a failure message where the request is NOT valid based on the LOV configuration. In this example, the request is missing the required key value of INSTITUTION which is required based on the LOV setup. The error message indicates “Validation Failed for ADM_APPL_DATA.INSTITUTION” which is helpful for troubleshooting.

<?xml version="1.0"?>
<SCC_LOV_RESP xmlns="http://xmlns.oracle.com/Enterprise/Tools/services">
  <IS_FAULT>Y</IS_FAULT>
  <SCC_FAULT_RESP>
    <detail>
      <MSGS>
        <MSG>
          <ID>14098-443</ID>
          <DESCR>Invalid request parameters.</DESCR>
          <MESSAGE_SEVERITY>E</MESSAGE_SEVERITY>
          <PROPS />
        </MSG>
        <MSG>
          <ID>14098-157</ID>
          <DESCR>Validation Failed for ADM_APPL_DATA.INSTITUTION</DESCR>
          <MESSAGE_SEVERITY>E</MESSAGE_SEVERITY>
          <PROPS />
        </MSG>
      </MSGS>
    </detail>
  </SCC_FAULT_RESP>
</SCC_LOV_RESP>

The response returns CODE and DESC pairs for each valid value. Notice how the <LOV name="INSTITUTION_LIST"> in the response matches the name attribute in the request which is helpful for identifying result sets when you combine multiple LOV requests into one call (which is supported and we will cover in a moment).

<?xml version="1.0"?>
<SCC_LOV_RESP xmlns="http://xmlns.oracle.com/Enterprise/Tools/services">
  <LOVS>
    <LOV name="INSTITUTION_LIST">
      <VALUES>
        <VALUE>
          <CODE>GLAKE</CODE>
          <DESC>Great Lakes University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSAUS</CODE>
          <DESC>PeopleSoft Australia Uni</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSCCS</CODE>
          <DESC>PS Community College System</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSESP</CODE>
          <DESC>PeopleSoft University Spain</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSFRA</CODE>
          <DESC>French University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSGBR</CODE>
          <DESC>PeopleSoft University UK</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSLAD</CODE>
          <DESC>Peoplesoft University LAD</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSNLD</CODE>
          <DESC>PeopleSoft University -  NLD</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSNZL</CODE>
          <DESC>Silver Fern University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSSTA</CODE>
          <DESC>PeopleSoft State University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSUCE</CODE>
          <DESC>PSU Community Education</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSUNV</CODE>
          <DESC>PeopleSoft University</DESC>
        </VALUE>
      </VALUES>
    </LOV>
  </LOVS>
</SCC_LOV_RESP>

Example with Filter and Exclusion

For fields that require parent keys (like ACAD_CAREER which needs INSTITUTION), configure “Prompt Table Filters” on the LOV setup:

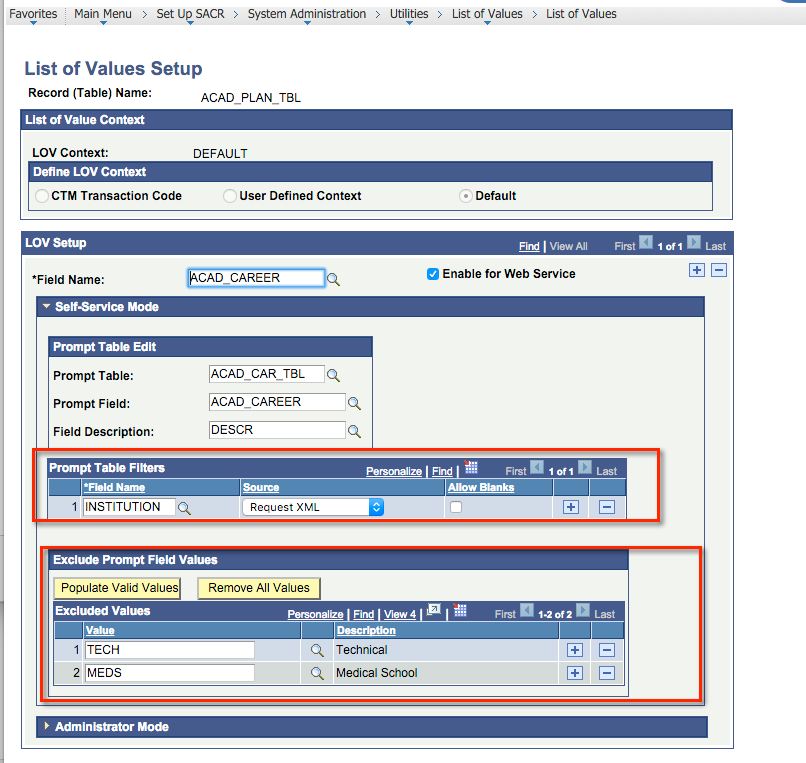

LOV Setup with Filters

The request XML includes key/value pairs:

<?xml version="1.0" encoding="UTF-8"?>
<SCC_LOV_REQ>
  <LOVS>
    <LOV name="CAREER_LIST">
      <FIELDNAME>ACAD_CAREER</FIELDNAME>
      <RECORDNAME>ACAD_PLAN_TBL</RECORDNAME>
      <LOVCONTEXT>DEFAULT</LOVCONTEXT>
      <KEYS>
        <KEY>
          <FIELDNAME>INSTITUTION</FIELDNAME>
          <FIELDVALUE>PSUNV</FIELDVALUE>
        </KEY>
      </KEYS>
    </LOV>
  </LOVS>
</SCC_LOV_REQ>

<?xml version="1.0"?>
<SCC_LOV_RESP xmlns="http://xmlns.oracle.com/Enterprise/Tools/services">
  <LOVS>
    <LOV name="CAREER_LIST">
      <VALUES>
        <VALUE>
          <CODE>CNED</CODE>
          <DESC>Continuing Education</DESC>
        </VALUE>
        <VALUE>
          <CODE>GRAD</CODE>
          <DESC>Graduate</DESC>
        </VALUE>
        <VALUE>
          <CODE>LAW</CODE>
          <DESC>Law</DESC>
        </VALUE>
        <VALUE>
          <CODE>MEDS</CODE>
          <DESC>Medical School</DESC>
        </VALUE>
        <VALUE>
          <CODE>TECH</CODE>
          <DESC>Technical</DESC>
        </VALUE>
        <VALUE>
          <CODE>UENG</CODE>
          <DESC>Undergraduate Engineering</DESC>
        </VALUE>
        <VALUE>
          <CODE>UGRD</CODE>
          <DESC>Undergraduate</DESC>
        </VALUE>
      </VALUES>
    </LOV>
  </LOVS>
</SCC_LOV_RESP>

You can also configure value exclusions in the LOV setup (e.g. exclude TECH, MEDS careers).

Combining LOV Calls

The SCC_GET_LOV service is designed to handle multiple LOV requests in a single HTTP call. Nest multiple LOV elements inside the LOVS parent node:

<?xml version="1.0" encoding="UTF-8"?>
<SCC_LOV_REQ>
  <LOVS>
    <LOV name="INSTITUTION_LIST">
      <FIELDNAME>INSTITUTION</FIELDNAME>
      <RECORDNAME>ADM_APPL_DATA</RECORDNAME>
      <LOVCONTEXT>DEFAULT</LOVCONTEXT>
      <KEYS>
        <KEY>
          <FIELDNAME />
          <FIELDVALUE />
        </KEY>
      </KEYS>
    </LOV>
    <LOV name="CAREER_LIST">
      <FIELDNAME>ACAD_CAREER</FIELDNAME>
      <RECORDNAME>ACAD_PLAN_TBL</RECORDNAME>
      <LOVCONTEXT>DEFAULT</LOVCONTEXT>
      <KEYS>
        <KEY>
          <FIELDNAME>INSTITUTION</FIELDNAME>
          <FIELDVALUE>PSUNV</FIELDVALUE>
        </KEY>
      </KEYS>
    </LOV>
  </LOVS>
</SCC_LOV_REQ>

The response contains both result sets with the name attribute echoed back for identification.

<?xml version="1.0"?>
<SCC_LOV_RESP xmlns="http://xmlns.oracle.com/Enterprise/Tools/services">
  <LOVS>
    <LOV name="INSTITUTION_LIST">
      <VALUES>
        <VALUE>
          <CODE>GLAKE</CODE>
          <DESC>Great Lakes University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSAUS</CODE>
          <DESC>PeopleSoft Australia Uni</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSCCS</CODE>
          <DESC>PS Community College System</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSESP</CODE>
          <DESC>PeopleSoft University Spain</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSFRA</CODE>
          <DESC>French University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSGBR</CODE>
          <DESC>PeopleSoft University UK</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSLAD</CODE>
          <DESC>Peoplesoft University LAD</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSNLD</CODE>
          <DESC>PeopleSoft University -  NLD</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSNZL</CODE>
          <DESC>Silver Fern University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSSTA</CODE>
          <DESC>PeopleSoft State University</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSUCE</CODE>
          <DESC>PSU Community Education</DESC>
        </VALUE>
        <VALUE>
          <CODE>PSUNV</CODE>
          <DESC>PeopleSoft University</DESC>
        </VALUE>
      </VALUES>
    </LOV>
    <LOV name="CAREER_LIST">
      <VALUES>
        <VALUE>
          <CODE>CNED</CODE>
          <DESC>Continuing Education</DESC>
        </VALUE>
        <VALUE>
          <CODE>GRAD</CODE>
          <DESC>Graduate</DESC>
        </VALUE>
        <VALUE>
          <CODE>LAW</CODE>
          <DESC>Law</DESC>
        </VALUE>
        <VALUE>
          <CODE>MEDS</CODE>
          <DESC>Medical School</DESC>
        </VALUE>
        <VALUE>
          <CODE>TECH</CODE>
          <DESC>Technical</DESC>
        </VALUE>
        <VALUE>
          <CODE>UENG</CODE>
          <DESC>Undergraduate Engineering</DESC>
        </VALUE>
        <VALUE>
          <CODE>UGRD</CODE>
          <DESC>Undergraduate</DESC>
        </VALUE>
      </VALUES>
    </LOV>
  </LOVS>
</SCC_LOV_RESP>
